PDSim.flow package¶

Submodules¶

PDSim.flow.fanno module¶

PDSim.flow.fanno.Fanno_Ma_nondimLength(double Lparam, double gamma) → double¶

Fanno flow analysis inverted calculation to get mach number from nondim. length

For the given length parameter (4*f_F*L_{1-2}/D_h), find the Mach number by doing a solve using the secant method

Parameters:

Lparam (float) – Fanno flow length term given by (4*f_F*L_{1-2}/D_h)
gamma (float) – Ratio of specific heats (cp/cv)

PDSim.flow.fanno.p_pstar(double Ma, double gamma) → double¶

Return p/pstar, given by

\[\]

rac{p}{p^*} = rac{1}{Ma}left( rac{(gamma+1)}{2} ight)^{1/2}*left(1+ rac{(gamma-1)}{2}Ma^2 ight)^{-1/2}

PDSim.flow.flow module¶

class PDSim.flow.flow.FlowPath(key1='', key2='', MdotFcn=None, MdotFcn_kwargs={}, Nflows=1)¶

Bases: object

Parameters:

key1 (string) – The key for the first flow node connected to this path
key2 (string) – The key for the second flow node connected to this path
MdotFcn (function) –
Two options, either an instance of FlowFunction, or a function with a prototype like f(double A,FlowPath FP, **kwargs). See also FlowFunction.

Any function passed in for MdotFcn will be wrapped into an instance of FlowFunction. Using an instance of FlowFunction is more computationally efficient because the Cython code doesn’t need to pass back through the python level and can all stay at the C/C++ level.
MdotFcn_kwargs (dictionary) – A dictionary of terms that will be passed along to the call to MdotFcn when it is called
Nflows (int) – The number of flows that are to be calculated for the flow path (by default 1)

A¶

‘double’

The flow area [m^2]

Type:: A

MdotFcn¶

PDSim.flow.flow_models.FlowFunction

The function that will return the mass flow rate

Type:: MdotFcn

MdotFcn_str¶

bytes

Type:: MdotFcn_str

State1¶

CoolProp.CoolProp.State

The first state

Type:: State1

State2¶

CoolProp.CoolProp.State

The second state

Type:: State2

State_down¶

CoolProp.CoolProp.State

The downstream state

Type:: State_down

State_up¶

CoolProp.CoolProp.State

The upstream state

Type:: State_up

T_up¶

‘double’

The upstream temperature [K]

Type:: T_up

calculate(self)¶: Calculate the flow path

edot¶

‘double’

The rate of irreversibility generation in this flow path [kW]

Type:: edot

exists¶

‘bool’

Type:: exists

get_deepcopy(self) → FlowPath¶

h_down¶

‘double’

The downstream enthalpy [kJ/kg]

Type:: h_down

h_up¶

‘double’

The upstream enthalpy [kJ/kg]

Type:: h_up

ikey1¶

‘int’

Type:: ikey1

ikey2¶

‘int’

Type:: ikey2

ikey_down¶

‘int’

Type:: ikey_down

ikey_up¶

‘int’

Type:: ikey_up

key1¶: The string key corresponding to the first node

key1Index¶

‘long’

Type:: key1Index

key1_exists¶

‘bool’

Type:: key1_exists

key2¶: The string key corresponding to the second node

key2Index¶

‘long’

Type:: key2Index

key2_exists¶

‘bool’

Type:: key2_exists

key_down¶: The string key corresponding to the downstream node

key_down_Index¶

‘long’

Type:: key_down_Index

key_down_exists¶

‘bool’

Type:: key_down_exists

key_up¶: The string key corresponding to the upstream node

key_up_Index¶

‘long’

Type:: key_up_Index

key_up_exists¶

‘bool’

Type:: key_up_exists

mdot¶

‘double’

The mass flow rate [kg/s]

Type:: mdot

p_down¶

‘double’

The downstream pressure [kPa]

Type:: p_down

p_up¶

‘double’

The upstream pressure [kPa]

Type:: p_up

class PDSim.flow.flow.FlowPathCollection(iterable=(), /)¶

Bases: list

calculate(self)¶: Run the code for each flow path to calculate the flow rates

get_deepcopy(self)¶: Using this method, the link to the mass flow function is broken

sumterms(self, arraym summerdT, arraym summerdm)¶

Sum all the mass flow and mdot*h for each CV in existence at a given step for the derivatives in the ODE solver

Meant to be called by PDSimCore.derivs()

Parameters:

summerdT (arraym instance)
summerdm (arraym instance)

update_existence(self, Core)¶

A function to update the pointers for the flow path as well as check existence of the states on either end of the path

This is required whenever the existence of any of the CV or tubes changes. Calling this function will update the pointers to the states

Parameters:: Core (PDSimCore instance or derived class thereof)

PDSim.flow.flow.rebuildFlowPath(d)¶

class PDSim.flow.flow.struct(d)¶: Bases: object

PDSim.flow.flow.sumterms_given_CV(key, list Flows) → tuple¶

A function to sum all the mdot terms for a given control volume

Searches the list of flows and for each element in the flows, checks whether the key matches one of upstream or downstream key

Parameters:

key (string)
Flows (FlowPathCollection instance)

PDSim.flow.flow_models module¶

class PDSim.flow.flow_models.FlowFunction(Nvalues=1)¶

Bases: object

A wrapper to contain the function that will be called

Two methods are provided, call(FP) and __call__(FP). The special method

__call__(FP) allows an instance of FlowFunction to be called directly like:

FFW = FlowFunction()
FFW(FP)

or you can call the call() method like:

FFW.call(FP)

Having both methods allows cython functions to stay at the C++ layer since they can call the .call() function with defined argument types and not need to come back to python layer for speed

See also PyFlowFunctionWrapper

Returns:

mdotfloat: The mass flow rate in kg/s

Nflows¶

‘int’

Type:: Nflows

call(self, FlowPath FP) → double¶

flows¶

PDSim.misc.datatypes.arraym

Type:: flows

resize(self, int Nflows)¶: Resize the storage arraym

PDSim.flow.flow_models.FrictionCorrectedIsentropicNozzle(double A, State State_up, State State_down, double delta, int Type, double t=-1.0, double ro=-1.0) → double¶

Frictionally-corrected nozzle model - the so-called hybrid leakage model

Parameters:

A (float) – Flow area at the minimum area [\(m^2\)], equal to \(\delta_{flank}h\) for flank, and \(s_r\delta_{radial}\) for radial leakage. Intended for scroll compressor, but can be used with other compressors
State_up (State instance) – The State instance corresponding to the upstream side of the flow path
State_down (State instance) – The State instance corresponding to the downstream side of the flow path
delta (float) – Gap width in meters
Type (int) – One of flow_models.TYPE_RADIAL or flow_models.TYPE_FLANK
t (float) – Scroll wrap thickness in m
ro (float) – Orbiting radius in m

Notes

If Type is flow_models.TYPE_RADIAL, t must be provided

If Type is flow_models.TYPE_FLANK, ro must be provided

Implements the frictionally-corrected method of Bell, I, Groll, E, Braun, J. E, & W. Travis, H. (in press, 2013). A computationally efficient hybrid leakage model for positive displacement compressors and expanders. International Journal of Refrigeration.

PDSim.flow.flow_models.IsentropicNozzle(double A, State State_up, State State_down, int other_output=-1) → double¶

The mass flow rate is calculated by using isentropic flow model

Parameters:

A – double Throat area of the nozzle [m\(^2\)]
State_up – State instance Upstream State instance
State_down – State instance Downstream State instance
other_output – int Default is to return the mass flow rate, can over-ride by passing flow_models.OUTPUT_VELOCITY or flow_models.OUTPUT_MA instead

Returns:

double: Default is to return the mass flow rate, can over-ride by passing flags in the other_output variable

Return type:

out

class PDSim.flow.flow_models.IsentropicNozzleWrapper¶

Bases: FlowFunction

A wrapper that can be added to call the isentropic nozzle model if the flow area is constant

call(self, FlowPath FP) → double¶: Returns the mass flow rate from the isentropic nozzle model

PDSim.flow.flow_models.IsothermalWallTube(mdot, State1, State2, fixed, L, ID, OD=None, HTModel='Twall', Tmean=None, T_wall=None, Q_add=0.0, alpha=None)¶

In this tube model, one of the nodes is known (fixed), but the other is calculated based on heat transfer and pressure drop for a given mass flow rate

Assumes flow is turbulent and fully developed. The flow is almost certainly fully turbulent, but it is unlikely to be truly fully developed

Parameters:

mdot (float) – mass flow rate [kg/s]
State1 (State instance) – State number 1 for the Tube
State2 (State instance) – State number 2 for the Tube
fixed (int, 1 or 2) – Which node is fixed
L (float) – Length of tube [m]
ID (float) – Internal diameter of tube [m]
OD (float, optional) – Outer diameter of tube [m], not used if fixed wall temperature
HTModel (‘Twall’ or [other models] , optional) – Key for what type of model is used for the heat transfer
Tmean (float, optional) – Mean fluid temperature for evaluation of fluid properties [K]
T_wall (float, optional) – Temperature of wall [K]
Q_add (float, optional) – Additional amount of heat that will be added to the fluid in the tube [kW] This term is not added to the amount of heat transfer returned from this function
alpha (float, optional) – The heat transfer coefficient [kW/m2/K]. If not provided, calculated from correlations

Returns:

Q – The amount of heat transfer [W], not including Q_add

Return type:

float

class PDSim.flow.flow_models.PyFlowFunctionWrapper(Function, kwargs, Nflows=1)¶

Bases: FlowFunction

This class is defined in order to wrap python functions for ease-of-use.

In this way, functions defined at the python level can still be used by the Cython code

Function¶

object

Type:: Function

call(self, FlowPath FP) → double¶: Call the flow path function, and store the flows that are calculated in the values arraym instance

kwargs¶

dict

Type:: kwargs

class PDSim.flow.flow_models.ValveModel(double d_valve, double d_port, double C_D, double rho_valve, double x_stopper, double m_eff, double k_valve, double x_tr, key_up, key_down)¶

Bases: object

(Source code, png, hires.png, pdf)

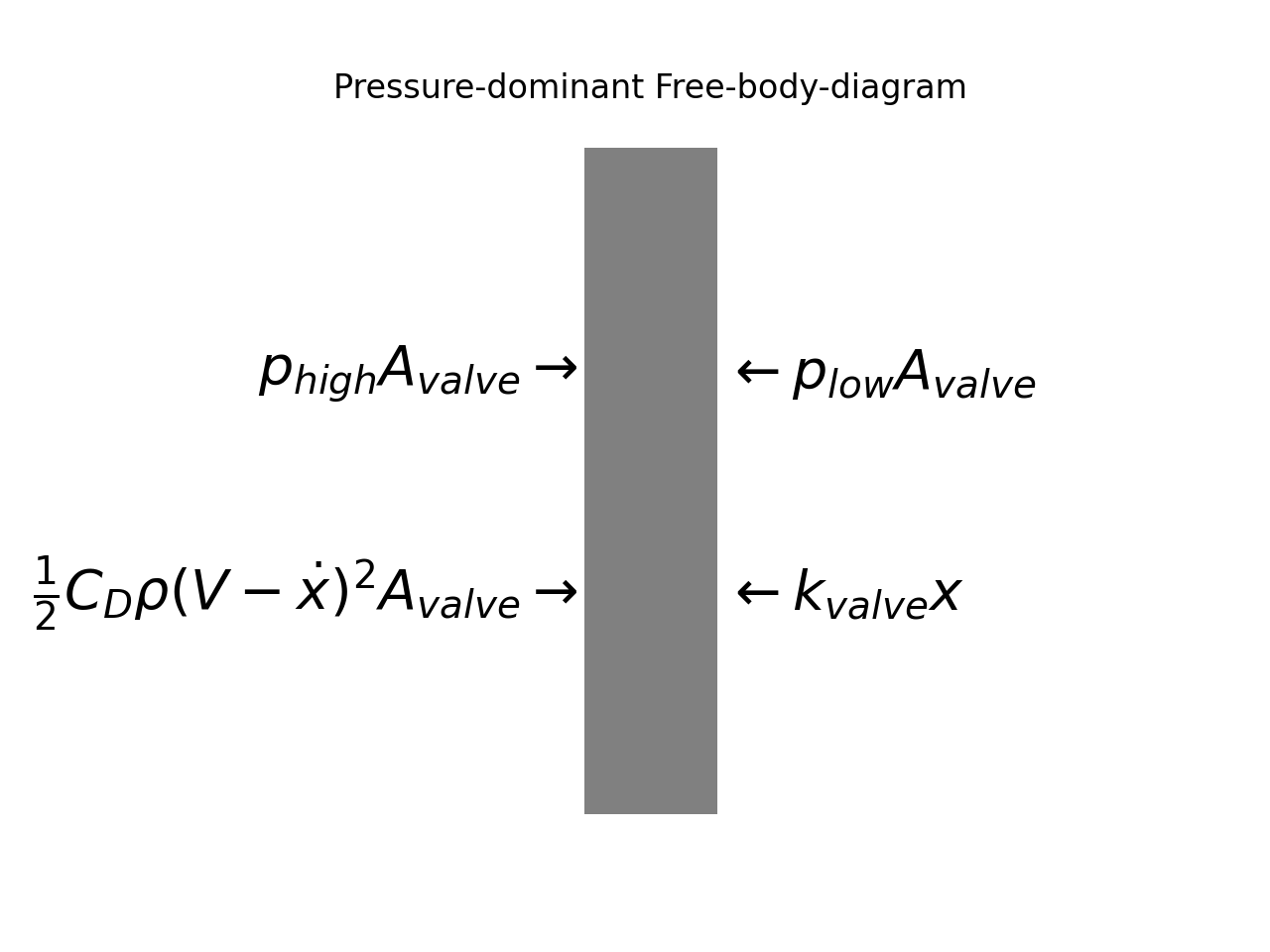

Pressure-dominant Regime

\[M_{valve}\ddot x_{valve}+k_{valve}x_{valve} = (p_{high}-p_{low}) A_{valve}+\frac{1}{2}C_D\rho (V-\dot x_{valve})^2A_{valve}\]

Two variables are \(x_2=\dot x_{valve}\) and \(x_1=x_{valve}\) where \(\ddot x_{valve}=\frac{d}{dt}[\dot x_{valve}]\) or \(\ddot x_{valve}=\dot x_2\). Thus the system of derivatives is

\[\begin{split}\mathbf f_{valves}=\frac{d}{dt}\left[ \begin{array}{c} \dot x_{valve} \\ x_{valve} \end{array} \right]=\left[ \begin{array}{c} \frac{d}{dt}[\dot x_{valve}] \\ \frac{d}{dt}[x_{valve}] \end{array} \right]\end{split}\]

Thus the system of equations is given by

\[ \begin{align}\begin{aligned}\dot x_1 = x_2\\M_{valve}\dot x_2+k_{valve}x_1 = (p_{high}-p_{low}) A_{valve}+\frac{1}{2}C_D\rho (V-x_2)^2A_{valve}\end{aligned}\end{align} \]

which yields the solution for the derivatives of \(x_1\) and \(x_2\) of

\[ \begin{align}\begin{aligned}\dot x_1 = x_2\\\dot x_2 = \dfrac{(p_{high}-p_{low}) A_{valve}+\frac{1}{2}C_D\rho (V-x_2)^2A_{valve}-k_{valve}x_1}{M_{valve}}\end{aligned}\end{align} \]

(Source code, png, hires.png, pdf)

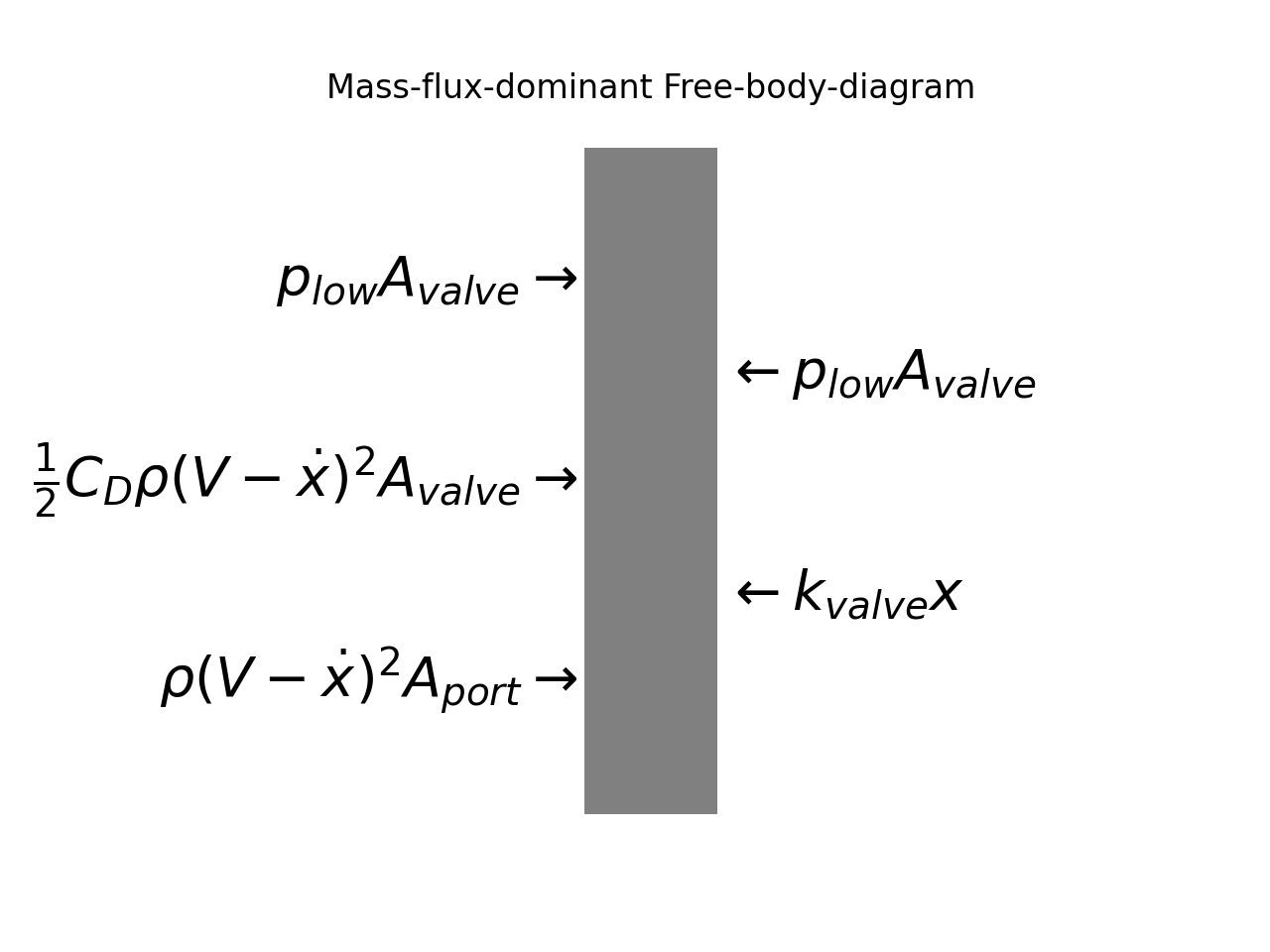

And if mass-flux-dominated, force balance given by

\[M_{valve}\ddot x_{valve}+k_{valve}x_{valve} = \frac{1}{2}C_D\rho (\mathbf V-\dot x_{valve})^2 A_{valve}+\rho (\mathbf V-\dot x_{valve})^2 A_{port}\]

Which yields the solution for the system of derivatives of

\[ \begin{align}\begin{aligned}\dot x_1 = x_2\\\dot x_2= \dfrac{\frac{1}{2}C_D\rho (\mathbf V-x_2)^2 A_{valve}+\rho (\mathbf V-x_2)^2 A_{port}-k_{valve}x_1}{M_{valve}}\end{aligned}\end{align} \]

A(self) → double¶

A_port¶

‘double’

Type:: A_port

A_valve¶

‘double’

Type:: A_valve

C_D¶

‘double’

Type:: C_D

State_down¶

CoolProp.CoolProp.State

Type:: State_down

State_up¶

CoolProp.CoolProp.State

Type:: State_up

d_port¶

‘double’

Type:: d_port

d_valve¶

‘double’

Type:: d_valve

derivs(self, Core) → arraym¶

Return the position and velocity as an arraym for the valve

Parameters:: Core – PDSimCore instance
Returns:: arraym instance
Return type:: out_array

flow_velocity(self, State State_up, State State_down) → double¶: For a given set of states, and a known valve lift, first check whether it is within the valve lift range, and then calculate the flow velocity

get_States(self, Core)¶: Core is the main model core, it contains information that is needed for the flow models

get_xv(self) → arraym¶: Return the valve lift and velocity

k_valve¶

‘double’

Type:: k_valve

key_down¶

object

Type:: key_down

key_up¶

object

Type:: key_up

m_eff¶

‘double’

Type:: m_eff

rho_valve¶

‘double’

Type:: rho_valve

set_xv(self, arraym xv)¶

x_stopper¶

‘double’

Type:: x_stopper

x_tr¶

‘double’

Type:: x_tr

xv¶

PDSim.misc.datatypes.arraym

Type:: xv

PDSim.flow.flow_models.makeIsentropicNozzleWrapper(kwds)¶

PDSim.flow.flow_models.makePyFlowFunctionWrapper(kwds)¶

PDSim.flow.flow_models.pow(double x, double y) → double¶

PDSim.flow.flow_models.rebuildValveModel(d)¶
